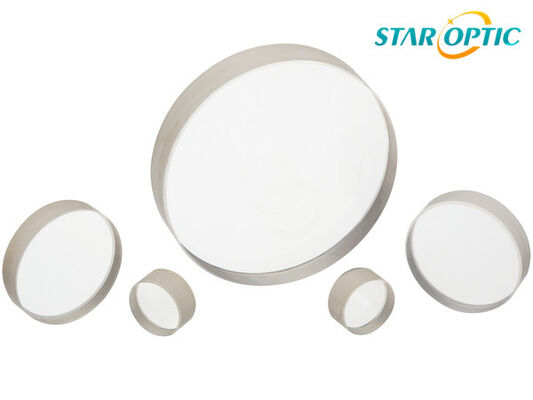

25.4mm Optical Cylinder Lens providing Surface Flatness λ4 alongside Optical Thin Film VIS To IR for Precision Measurement

Product Description:

The Optical Cylinder Lens is a specialized optical component designed to manipulate light in a precise and efficient manner. This lens features a clear aperture greater than 90%, ensuring minimal light loss and high transmission efficiency. It is engineered to operate effectively across a broad working wavelength range, spanning from ultraviolet (UV) through visible (VIS) to infrared (IR) spectra. This wide spectral compatibility makes the Optical Cylinder Lens highly versatile for various optical applications, including laser systems, imaging devices, and beam shaping instruments.

One of the standout features of this lens is its one-dimensional beam shaping capability. Unlike traditional spherical lenses that focus light in two dimensions, the Optical Cylinder Lens focuses or expands light in only one dimension. This unique characteristic allows for precise control of the beam profile, making it ideal for applications requiring line focusing or astigmatic beam correction. The lens’s ability to shape beams in a single dimension enhances the performance of optical systems by improving beam uniformity and reducing aberrations.

Constructed from high-quality optical glass, this Cylindrical Glass Lens offers excellent durability and optical clarity. The substrate material ensures that the lens maintains its shape and optical properties under varying environmental conditions, providing consistent performance over time. Optical glass is well-known for its high refractive index and low dispersion, which contributes to the lens’s superior focusing capabilities and minimal chromatic aberration.

The Optical Cylinder Lens is available in a range of dimensions, typically from 10x20 mm to 20x20 mm, with customization options to suit specific application requirements. This flexibility in sizing allows integration into diverse optical setups, whether for compact devices or larger systems. The customizable dimension feature ensures that engineers and designers can tailor the lens to fit unique mechanical constraints or optical path configurations.

In addition to its technical specifications, this lens serves multiple roles within optical assemblies. It can be used as a front glass lens, protecting delicate internal components while simultaneously shaping the incoming light. The robust construction and optical precision of the front glass lens contribute to enhanced system reliability and performance. Furthermore, the Optical Cylinder Lens is often utilized as an infrared lens, capable of efficiently transmitting and focusing infrared light, which is crucial in applications such as thermal imaging, spectroscopy, and telecommunications.

Overall, the Optical Cylinder Lens combines advanced material properties, precise optical performance, and versatile design options to meet the demanding needs of modern optical technologies. Its high clear aperture, broad working wavelength range, and one-dimensional beam shaping feature make it an essential component for systems requiring accurate and reliable light manipulation. Whether deployed as a cylindrical glass lens for beam shaping or as a front glass lens for protection and light transmission, this product delivers exceptional results across UV, visible, and infrared applications.

Features:

• Product Name: Optical Cylinder Lens
• Coating Wavelength Range: 400-700nm
• Raw Material: Optical Glass
• Feature: One Dimensional Beam Shaping
• Dimension: 10x20~20x20 and Custom sizes available
• Clear Aperture: Greater than 90%
• High-quality Achromatic Optical Lenses design for minimal chromatic aberration
• Ideal for use as an Interferometer Lens in precision optical applications
• Manufactured as a Cylindrical Glass Lens for specialized beam shaping

Applications:

The STAR OPTIC Optical Cylinder Lens, model CYX, originating from Wuhan, China, is a highly versatile optical component designed for various industrial and scientific applications. Manufactured using premium optical glass as the raw material and polished to a high standard with N<3(0.5)@632.8nm precision, this lens ensures exceptional clarity and performance across a broad working wavelength range from UV, VIS to IR. The lens features advanced AR coatings that significantly reduce reflection and enhance transmission, making it ideal for demanding environments.

This optical cylinder lens is widely used as an industrial lens in precision machinery, measurement systems, and optical instruments where accurate light manipulation is critical. Its unique cylindrical shape enables it to focus or expand light in one dimension, which is essential in laser scanning systems, barcode readers, and optical data storage devices. The superior optical thin film coatings provide excellent durability and performance in harsh industrial settings.

In the realm of photography and videography, the STAR OPTIC CYX lens serves effectively as an auto iris lens component. Its aspherical optical lens design minimizes spherical aberrations and distortions, ensuring sharp and high-quality imaging. This makes it suitable for use in security cameras, machine vision systems, and other automated optical devices requiring precise light control and image clarity.

The product is certified under RoHS and ISO9001 standards, guaranteeing compliance with international quality and environmental regulations. STAR OPTIC offers flexible purchasing options with a minimum order quantity of 5 pieces and negotiable pricing to accommodate various customer needs. Packaging is conducted with safe and dust-free methods to protect the lens during transit, and delivery times are negotiable to fit project schedules.

With a substantial supply ability of up to 50,000 pieces per month, STAR OPTIC ensures reliable availability for large-scale industrial projects and optical manufacturing. Payment terms include T/T, Western Union, and Paypal, providing convenient and secure transaction options. Whether used in industrial lens systems, integrated into auto iris lens assemblies, or incorporated aspherical optical lens elements, the CYX optical cylinder lens from STAR OPTIC is a dependable choice for high-performance optical applications.

Customization:

STAR OPTIC presents the CYX Optical Cylinder Lens, crafted with precision in Wuhan, China. Our product is certified with RoHS and ISO9001, ensuring superior quality and reliability. We specialize in customizations to meet your specific needs, offering lenses with a size of 25.4mm and dimensions ranging from 10x20 to 20x20, with additional custom sizing available.

Our Optical Cylinder Lenses are made from high-quality optical glass and feature an anti-reflective coating to enhance performance. The polishing standard is N<3(0.5)@632.8nm, ensuring exceptional clarity and minimal surface defects. We cater to a variety of applications, including Auto Iris Lens systems, Achromatic Optical Lenses, and Aspherical Optical Lens configurations.

With a supply ability of 50,000 pcs per month, we support both small and large orders, with a minimum order quantity of 5 pieces. Pricing is negotiable to fit your budget requirements. We provide safe and dust-free packing to guarantee product integrity during delivery. Delivery time and payment terms, including T/T, Western Union, and Paypal, are flexible and negotiable to accommodate your preferences.

Choose STAR OPTIC's CYX Optical Cylinder Lens for reliable, customizable optical solutions tailored to your advanced imaging and optical system needs.
